Know the SOLIDWORKS Interface
Use the visual reference to learn the name, location, purpose, shortcut, beginner mistake, and practical use of each important interface area.
Visual Interface Reference

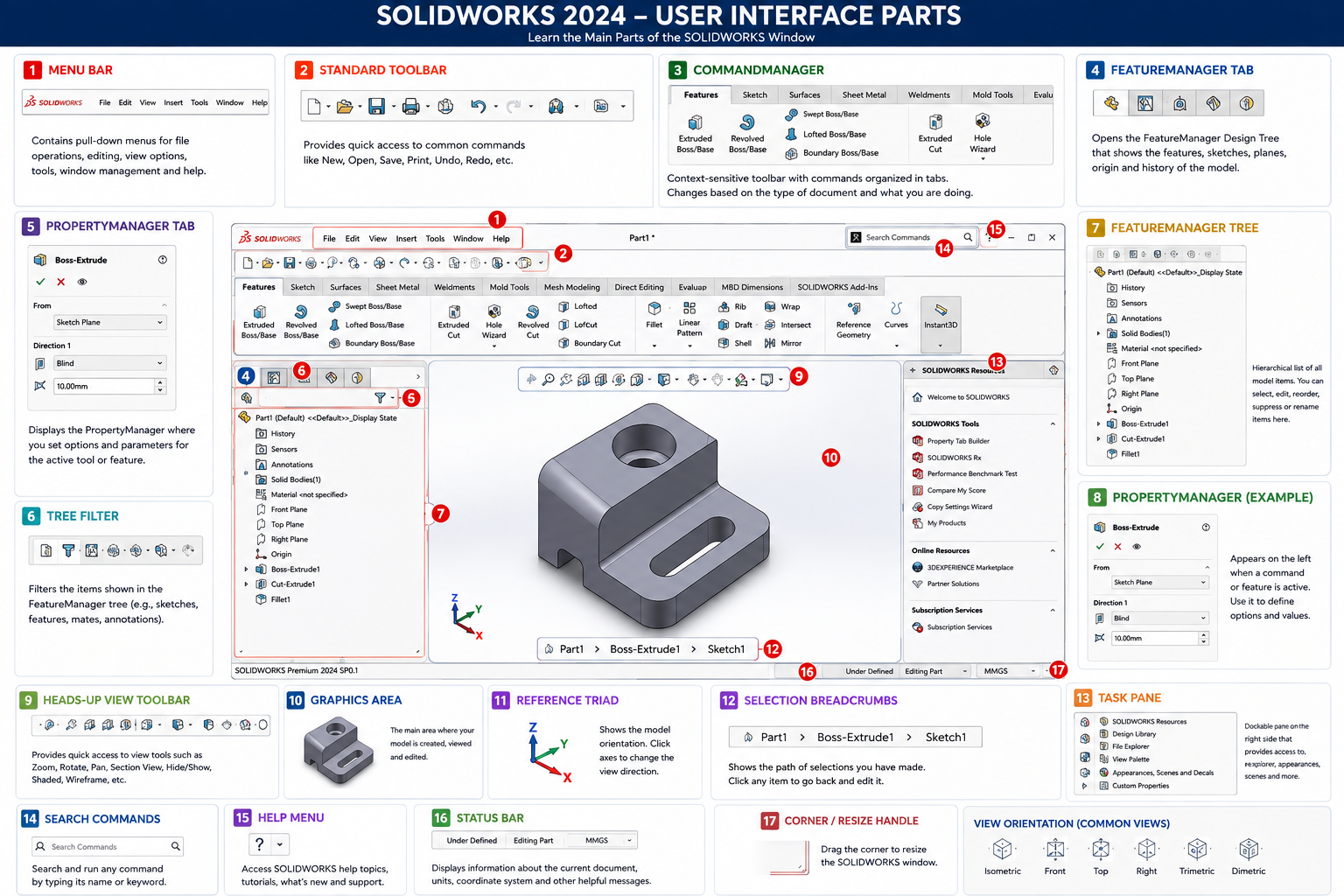

Start with the full image to understand the overall window, then study each element in detail below.
Learn Each Interface Part
Choose an element. The same reference image zooms to the relevant area while the full explanation appears below.

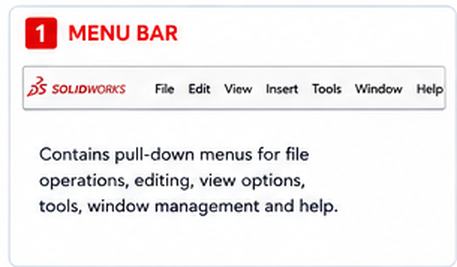

1. Menu Bar
High-Value Beginner Shortcuts
Open the Shortcut Bar near the pointer.
Open View Orientation.
Zoom to Fit.
Open an existing document.
Save your current work.
Undo the previous operation.
Show or hide Selection Filter toolbar.
Use mouse gestures when configured.
Common Beginner Mistakes
Hunting for icons
Learn command names and use Search Commands instead of scanning every tab.
Ignoring the FeatureManager tree
The tree tells you how the model was built and where to edit it.
Using poor feature names
Meaningful names make large models easier to understand and filter.
Working from a bad view
Use View Orientation before sketching or inspecting geometry.
Confusing Task Pane and PropertyManager
Task Pane = resources. PropertyManager = active command settings.
Trying to learn everything at once
Master a few high-value tools first, then add more as projects require them.
Practice Mission
Mission 1 — Explore
Open a new Part and identify the CommandManager, FeatureManager tree, Graphics Area, Heads-Up View Toolbar, Task Pane, and Status Bar.
Mission 2 — Navigate
Use Spacebar to change views, rotate the model, then press F to Zoom to Fit.
Mission 3 — Build & Inspect
Create a simple sketch and extrusion. Find Sketch1 and Boss-Extrude1 in the FeatureManager tree.
